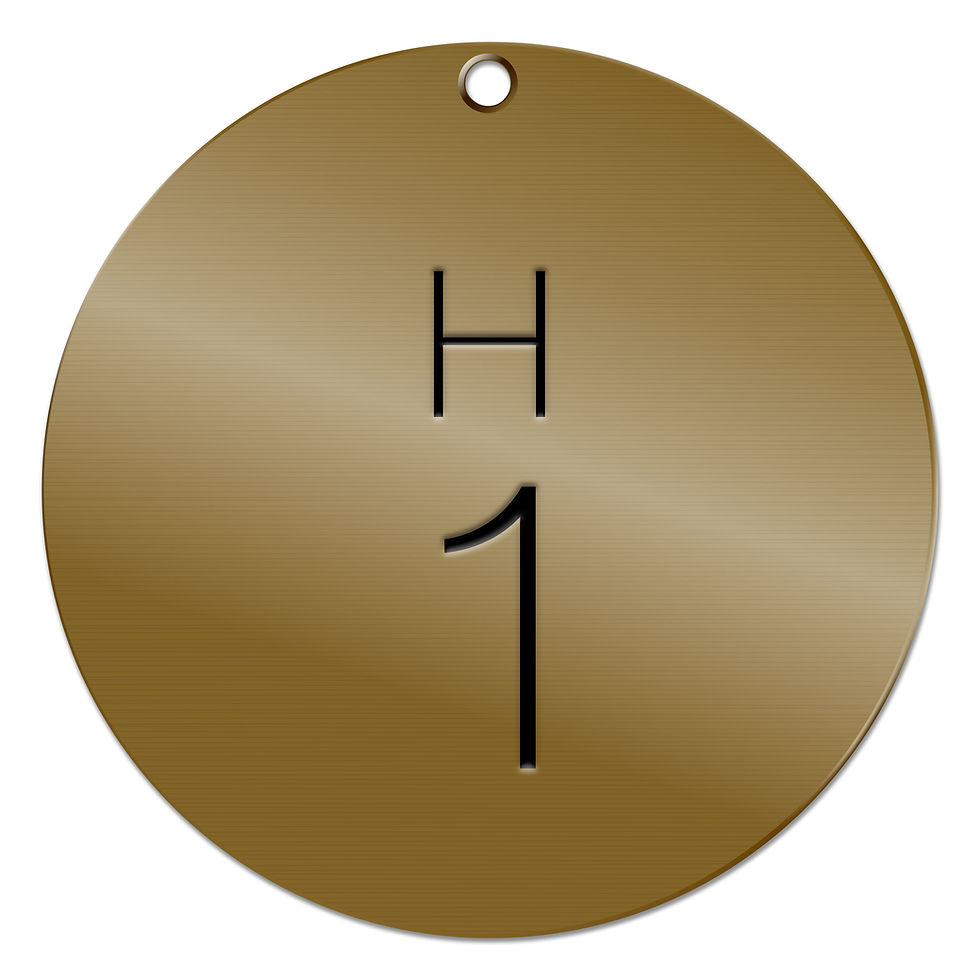

Round brass valve tags are 1 ¼" diameter, 0.025" thick yellow brass with a hole for chain installation
LETTERING (up to 3 characters per line)
3/8" high black paint-filled primary lettering. A 3/16" high identifier line above the primary lettering can also be included (for example “P” or “H”).
They are typically sold in sets of 25, eg 1-25, 26-50 etc. All tags have a 1/8" dia. by 4" long brass plated steel bead chain.
ROUND BRASS VALVE TAGS – H CODE
VALVES:
CUSTOM NUMBERS
The contractor shall identify all valves by means of an S.M.S. SP-1500 series; 11/2” square laminated plastic valve tag. Tags must be colour-coded in conformance with piping system colours as per CAN/CGSB-24.3-92. The system code must be 3/16” high characters on the top line, valve numbers to be 3/8” high on the bottom line. Brass valve tags that are 1 1/4” dia. by 0.025” thick with stamped 3/8” black paint filled characters are also available. Both tags come complete with 3/8” dia. by 4” long brass plated steel bead chains. Tags to be consecutively numbered and coded as per valve schedule. Special system designator codes to be approved by the consultant prior to tagging. All tags to be secured to valves by a brass bead chain. The contractor shall provide and mount for the owner a typed valve directory in a black document frame, listing complete valve number, location and service. Individual fixture valves need not be identified.
